SIMOTICS HT - gearless torque motor for applications demanding high torques

SIMOTICS HT motors are at home in all applications that require a very powerful drive without gearbox, also at low speeds. These permanent-magnet synchronous motors are the powerful low-noise solution for paper machine applications, such as presses or roller drives, in the steel industry, e.g. shears and edgers, in ships, such as bow thrusters, winches or main drives, or in mining/cement, e.g. crushers. In these applications, they clearly and convincingly leverage their advantages regarding efficiency, reliability, operating costs as well as size and weight when compared to conventional drive systems.

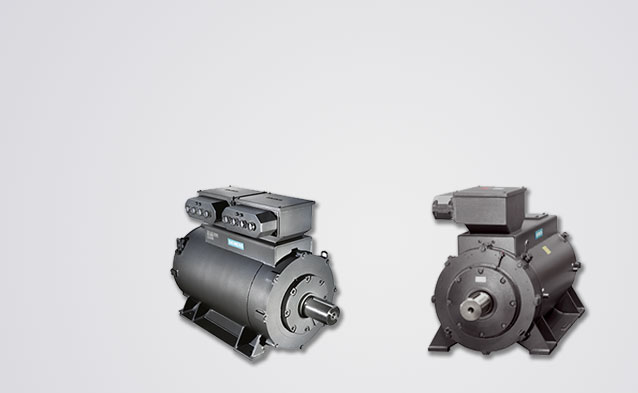

High-Torque Motors SIMOTICS HT Series HT-direct

Lower Operating Costs - Higher Availability

General description

The SIMOTICS HT Series HT-direct high-torque motors are permanent-magnet synchronous motors that can provide high torques at low speeds directly at the driven machine. High efficiencies and good power factors can also be achieved at low speeds as a result of the permanent magnet rotors.

The SIMOTICS HT Series HT-direct high-torque motors are offered as a harmonized system together with SINAMICS drive converters. The HT-direct motor / SINAMICS drive converter represents a drive solution with a long service lifetime but with low lifecycle costs and high efficiency for applications with low operating speeds.



Customer benefits

With slow-running drives, the efficiency of the HT-direct series is approximately 2 to 3 % higher than for similar drive concepts, if gear or gear steps can be saved. For a 1000 kW motor, this results in a saving of 33 kW, which is an annual saving of approximately 15000 € for an operating time of 8 hours per day.

High pole design in combination with permanent magnet technology ensures that the space requirement and mass of the motors are lower than for similar asynchronous machines. The slow-running motors of the HT-direct series obviate the need for a gearbox in many cases (reduction in engineering, assembly and maintenance outlay, lower investment and lower operating costs).

Efficient, optimally matched drive system, SINAMICS converter and HT-direct motor for operation with or without encoders.

Thanks to their long service life (nominal bearing lifetime > 60000 hours), HT-direct high-torque  motors are maintenance-free and have a high availability especially for applications in which a gearbox can be omitted.

Environmentally-friendly system (where applicable, no disposal of gearbox oil is necessary; energy-saving drive system).

Customization is possible



Typical applications

Applications where the following are important - high efficiency, low space requirements with low lifecycle costs for the drive solution. The main application of the SIMOTICS HT Series HT-direct high-torque motors areas are as follows:

Paper industry as roller and press drive

Marine industry as propeller drive (main and auxiliary drives)

Mining industry for mill drives

Steel industry e.g. for shears

Plastics industry as drive for extruder worms, foil-drawing machines

Crane industry for the widest range of applications

Sugar industry for sugar centrifuges

 Branch Chemical Industry
 Branch Oil & Gas
 Branch Water / Waste water



Catalogue of SIMOTICS HT High-Torque Motors
