Explosion-Proof Motors - ABB

 Motors for Explosive atmosphere - ABB

ABB offers a wide range of low and high voltage motors and generators for all protection types, certified according to all major standards.

ABB now supplies a full range of premium efficiency (IE3) non-sparking and dust ignition protection motors together with good coverage of flameproof motors – all in both 50 and 60 Hz versions. The motors deliver IE3 efficiency in the same frame sizes as IE2 products, so they provide an easy way for motor users to boost their process efficiency.

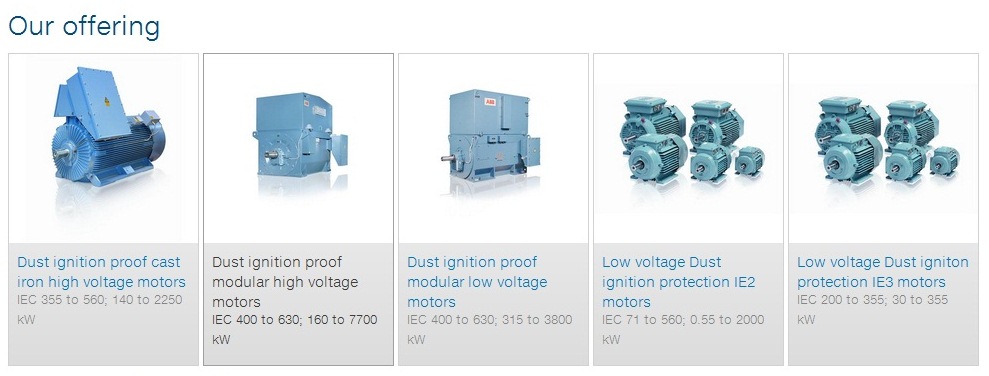

Dust ignition protection motors - ABB

ABB offers a wide range of dust ignition protection motors, both low and high voltage, from 0.25 to 7700 kW.

They fulfill the EN standards and ATEX directives, as well as comply with many other international and local regulations.
Low voltage motors fulfill IE2 and IE3 efficiency class requirements.
With Ex t motors, any explosion transmission of dust is prevented.





Pressurized motors - ABB

Equipment protection level Gb and Gc for zones 1 and 2
Ex px, Ex pxe, Ex pz, Ex pze

ABB offers a full line of performance-proven energy-efficient motors for industries. Products are engineered with industry driven designs and patented technology that ensure greater uptime, with less maintenance. With our in-depth understanding of your application needs we provide a dependable source for the most trusted brands in the oil and gas industries.

ABB pressurized motors and generators meet all national and international standards and requirements –including IEC, European (EN), ATEX  and NEMA. All fulfill demanding process applications, onshore or offshore, oil and gas pipelines, refineries and petrochemical plants, floating production storage and offloading oil platforms,  liquefied natural gas (LNG) plants. The motors can operate in harsh environments such as explosive atmospheres, extreme temperatures, corrosive dust or humidity.

The protection of the Ex px or Ex pz machine is mainly based on the pressured and purged enclosure. The enclosure shall be over pressured all the time during operation. The overpressure must be at least 50 Pa for Ex px machines and 25 Pa for Ex pz, and if it falls under the trip limit the electric supply shall be automatically switched off.

The mechanical design of an Ex px and Ex pz machine must meet the requirements of the applied standard. The aim of mechanical design is to prevent arcs, sparks and hot surfaces to come in contact with the hazardous are.

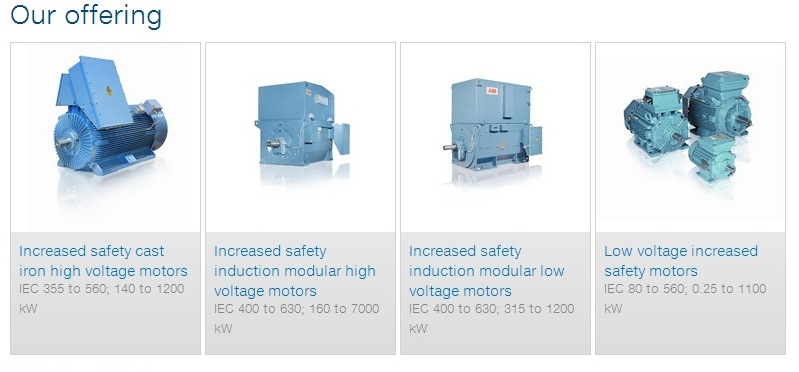

Increased Safety motors - ABB

Equipment protection levels Gb for zones 1 and 2

ABB offers full ranges of increased safety motors.

Certified according to IEC and EN standards, fulfill ATEX directives, and many other international regulations
Low voltage motors fulfill the IE2 efficiency class requirements

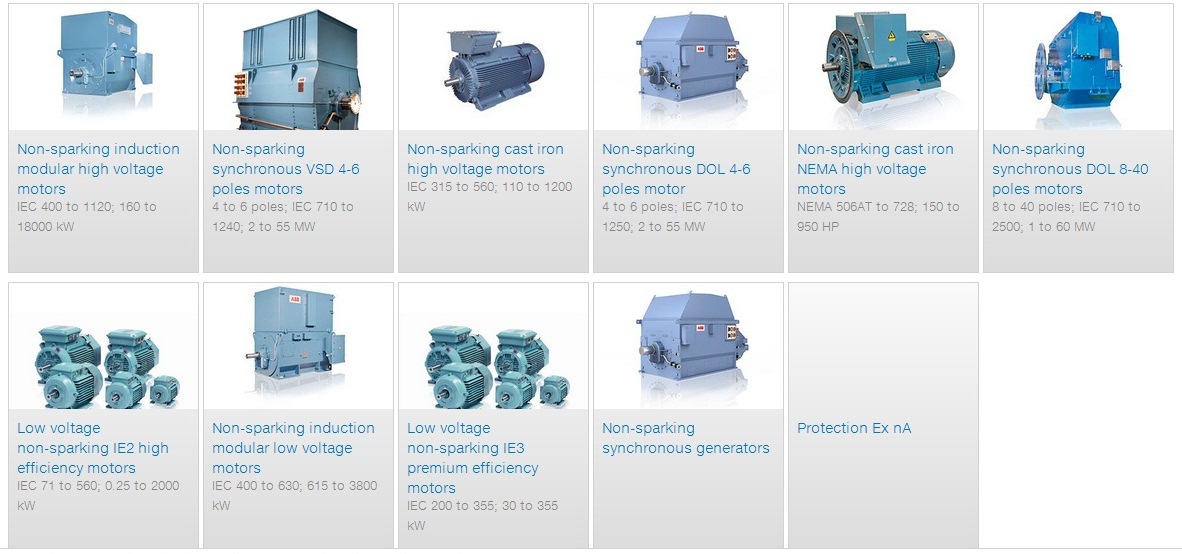

 Non sparking motors - ABB



Equipment protection level Gc for zones 2

ABB offers a wide range of non-sparking motors, both low and high voltage, from 0.25 to 18000 kW.

Certified according to IECEx and ATEX, as well as comply with many other international and local requirments.
Low voltage non-sparking motors fulfill IE2 and IE3 efficiency class requirements.

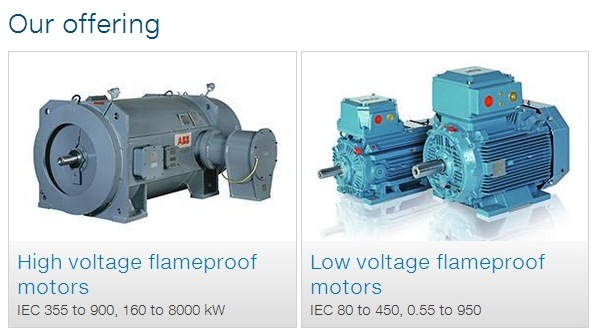

 Flameproof motors - ABB

Equipment protection level Gb for zones 1 and 2

ABB offers full range of low and high voltage flameproof motors, from 0.55 to 4500 kW.

Certified according to IECEx System, ATEX Directives and according to many other local regulations.
Full range of IE2 low voltage flameproof motors.
Flameproof motors are designed to withstand any damage the pressure caused by an internal explosion and are also able to prevent flame propagation outside.



Catalogue of Explosion-Proof Motors -  ABB



* For more information and buy ABB equipment , kindly contact sales department.
