Amacan submersible pump - KSB

Amacan submersible pump in discharge tube – slim design and powerful performance

Amacan submersible pumps in discharge tubes are used in waste water treatment and in aquaculture. They may have a compact and slim design, but they are extremely powerful.



The slim design makes the Amacan submersible pump ideal for installation into narrow discharge tubes. Amacan variants offered by KSB:

Amacan K – Submersible pump in discharge tube with non-clogging impeller
Amacan P – Submersible pump in discharge tube with axial propeller



Amacan K submersible pump
Waste water treatment applications

Mixed water and activated sludge pumps in waste water treatment plants
Irrigation and drainage pumping stations
Stormwater pumping stations
Water pollution control, flood control and aquaculture



Benefits

Robust and undemanding: Direct drive by three-phase motor and optimum motor cooling by fluid handled make for efficient power utilisation.
Easy to install: The pump’s own weight ensures self-centering seating in the discharge tube, and an O-ring seals it. No anchoring or anti-rotation elements; quick to install or remove.
Safe and reliable: Bearing temperature monitoring, thermal motor protection and leakage sensor in the motor space
Hydraulically optimised: Low-vibration hydraulic system; bellmouth optimised for vortex-free inflow.

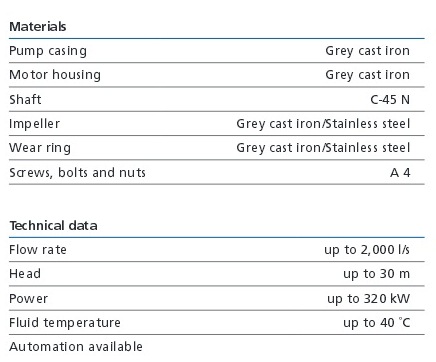

Technical Data of Amacan K submersible pump





Amacan P submersible pump
Waste water treatment applications

Raw and clean water pumps in water works and sewage treatment systems
Cooling water pumps in power stations and in industry
Industrial water supply
Stormwater pumping stations
Irrigation and drainage pumping stations
Water pollution control, flood control and aquaculture



Additional benefits

Trouble-free operation: Protection against long fibres ensured by mechanical seals in tandem arrangement, liquid supply chamber, high-quality and wear-resistant contact-face material
Safe and reliable: Leakage monitoring of the mechanical seal system
Hydraulically optimised: Inlet ribs
Economically efficient: Slim motor minimising discharge tube flow losses

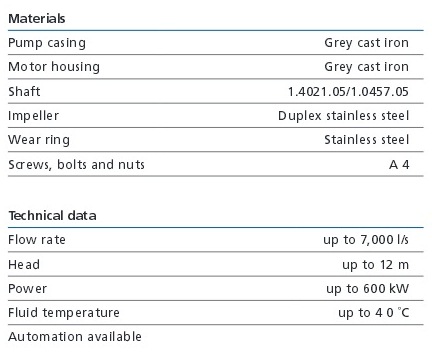

Technical Data of Amacan P submersible pump





 Amacan P

 Amacan K

 Amacan S
