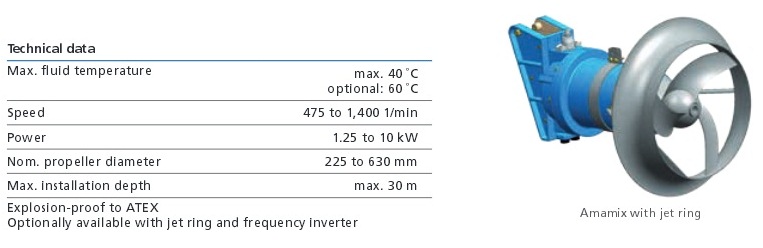

Amamix submersible mixer – energy-efficient waste water treatment

KSB’s Amamix submersible mixer ensures ideal energy input in waste water treatment processes. High efficiency levels are achieved thanks to the optimised propeller design.



Waste water treatment applications for Amamix submersible mixers

Sludge silos
Balancing tanks
Sewage tanks
Stormwater stand-by tanks
Digesters
Thickeners
Ice prevention
Nitrification tanks
Denitrification tanks
Biological phosphate removal tanks
Flocculation tanks
Pump sumps
Flow acceleration
Biogas digesters (fermenters)
Biogas post-digesters
Biogas sludge storage tanks
Biogas mixing tanks



Benefits of Amamix submersible mixers
Excellent efficiency

Compact, hydraulically optimised design
The propeller generates maximum thrust at minimum power consumption; its non-clogging design ensures a long and trouble-free service life.

Long maintenance intervals

Self-cleaning
An oil change is only required every two years; Amamix runs for 16,000 operating hours without an oil change.

Excellent operating reliability

The motor is monitored by three temperature sensors and a moisture sensor
Triple dynamic sealing system consisting of two mechanical seals (SIC/SIC) and a lip seal
An absolutely water-tight, resin-embedded cable entry protects the motor against moisture.
Reduced spare parts inventories, straightforward replacement
Interchangeable components and standardised parts
The plug-type connection enables straightforward replacement without special tools.



Clean technology

The oil chamber is filled with ecologically acceptable white oil.







2-page Leaflet - Amamix submersible mixer







Amaprop submersible mixer used for energy-efficient biogas production

The low speed of the Amaprop horizontal submersible mixer ensures energy-efficient and reliable biogas production.

The following features make for energy-efficient, reliable operation of the submersible mixer:

Low speed
Optimised hydraulic system – enhanced thrust at reduced energy
Break-resistant propeller
Moisture protection thanks to absolutely water-tight cable entry
Temperature sensor for motor temperature monitoring

The Amaprop submersible mixer is markedly more energy-efficient than higher-speed mixing equipment. Investment in biogas production using a low-speed Amaprop mixer (agitator) pays off within less than six months.



Benefits of the horizontal Amaprop submersible mixer at a glance:

Energy-efficient

Efficient bulk flow in large fluid volumes

Break-resistant

Propeller blades made of glass fibre reinforced epoxy resin with metal hub insert and protective gel coating.

Leak-tight

Two bi-directional mechanical seals with oil reservoir filled with ecologically acceptable oil.

Monitoring

Leakage chamber between oil chamber and gear unit
